$10-30 /Piece/Pieces
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean,Land,Air |
| Port: | DaLian,Shanghai,Tianjin |

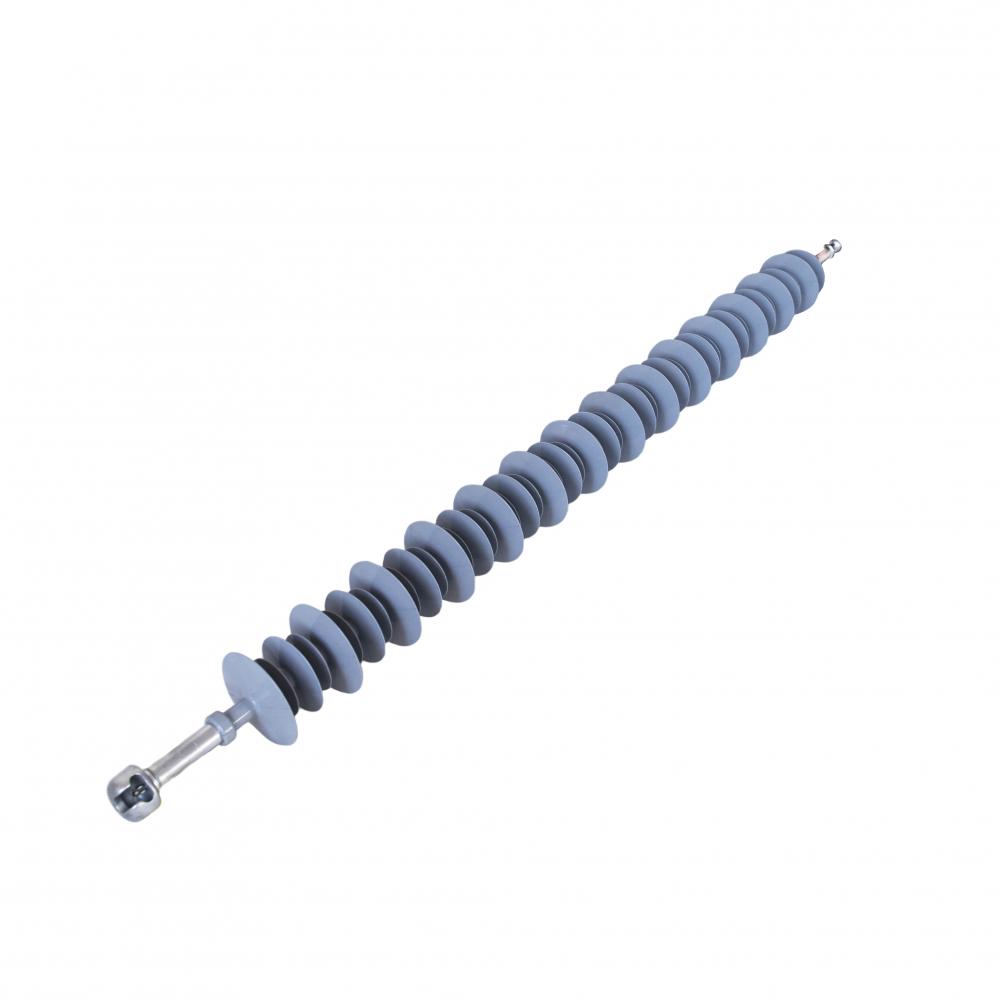

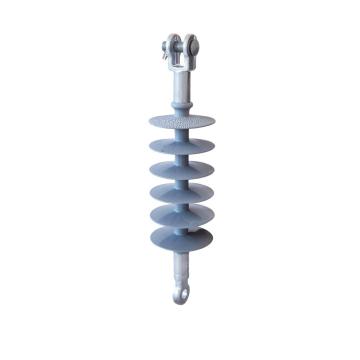

Model No.: FXBW-132/70
Brand: NXE
Place Of Origin: China
Model Number: FXBW-132/70
Type: Insulator
Material: Composite Polymer
Rated Voltage: 132kV
Tensile Strength: 70kN
Color: Red, grey or customized
OEM/ODM: Yes
Standard: IEC61109
Brand Name: NXE
Application: High Voltage
| Selling Units | : | Piece/Pieces |
| Package Type | : | By carton or free fumigation wooden pallet. Or based on clients' request |
| Picture Example | : |
|
The file is encrypted. Please fill in the following information to continue accessing it
| Rated voltage(kV) | Rated mechanical tension load(kN) | Structure of coupling marks | Structure height(mm) H | Min.Electric arc distance(mm) h | Min nominal creepage distance(mm) | Full wave lightning impulse withstand voltage(peak value)not less than(kV) | 1min power frequency wet withstand voltage not less than(kV) |
| 132 | 120 | 16 | 1440 | 1210 | 3520 | 550 | 230 |

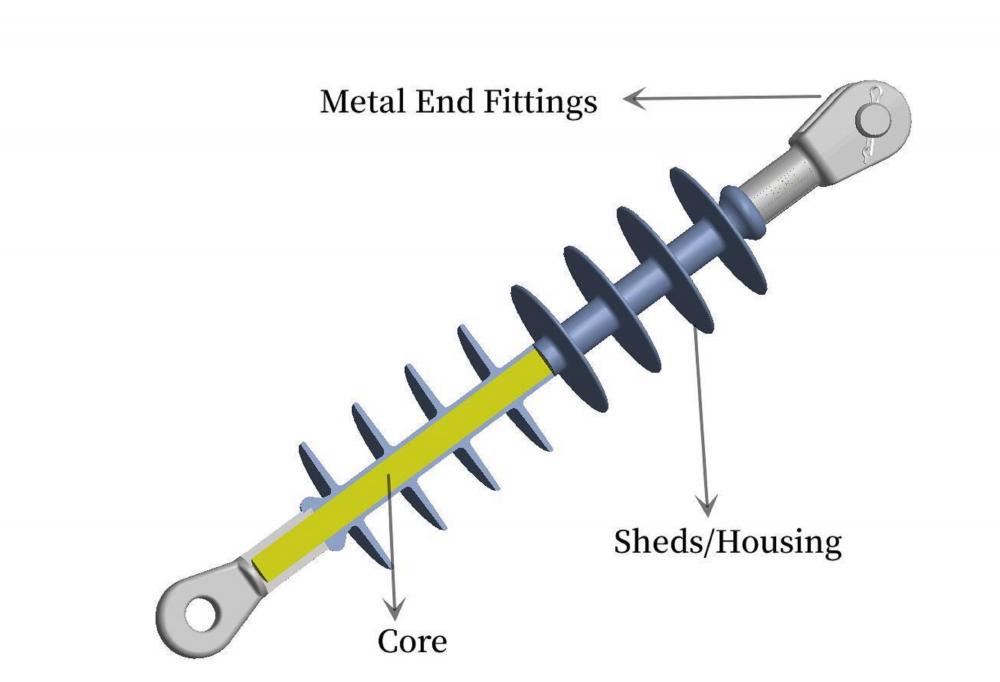

1).Silicon Rubber for sheds/housing.
2).Glass-fiber reinforced epoxy resin rod (ECR type) for core.
3).Hot dip galvanized cast steel for metal fittings.

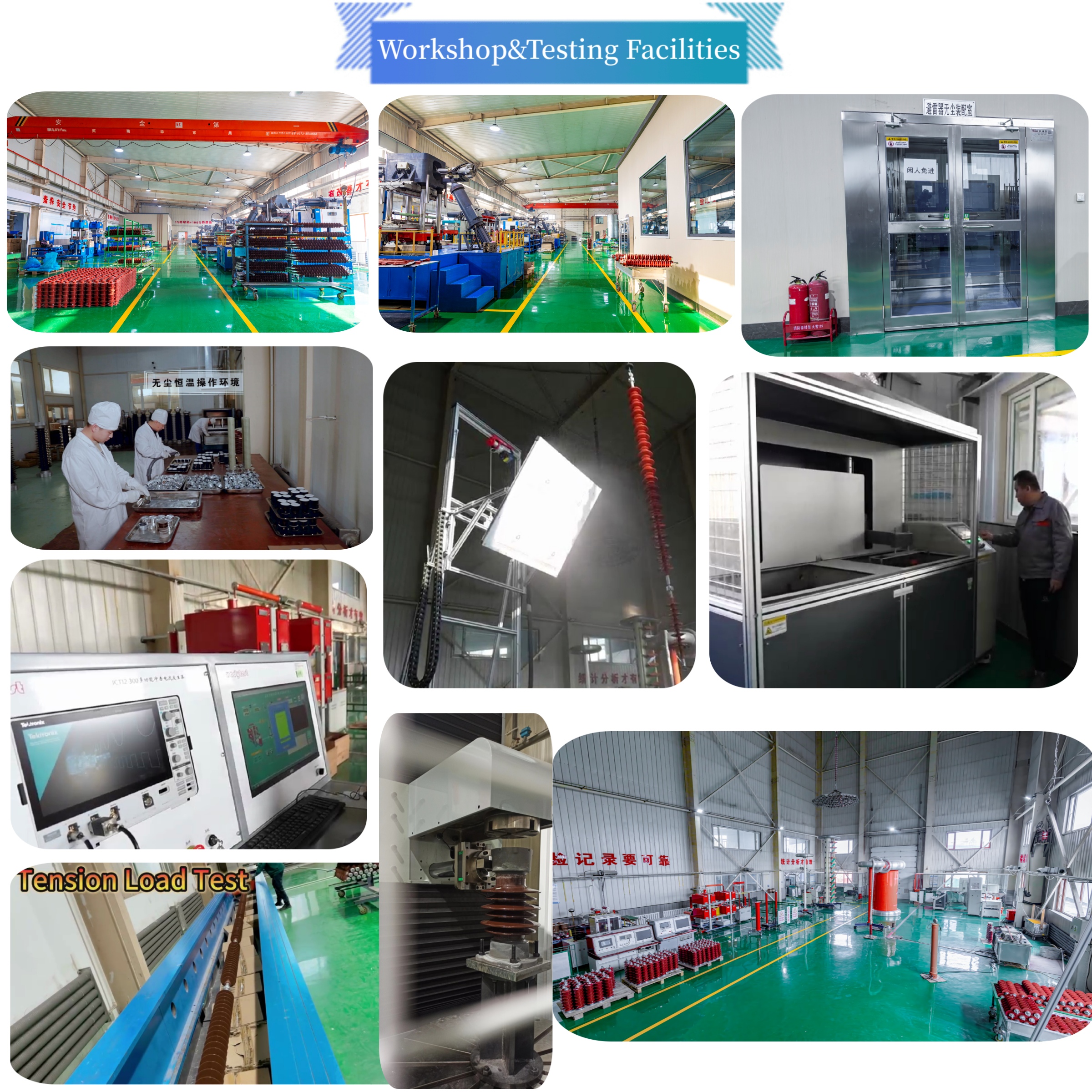

4).1000hours aging test & Prototype Test & Type Test & Factory Test ( Routine and Sampling Test ).
5).IEC / ANSI / GB standard.
