$5-10 /Piece/Pieces
| Payment Type: | L/C,T/T |
| Incoterm: | FOB,CFR,CIF,EXW |
| Min. Order: | 1 Piece/Pieces |
| Transportation: | Ocean |
| Port: | DaLian |
Model No.: FXBW
Brand: NXE
Place Of Origin: China
Brand Name: Nengxing
Model Number: FPQB1

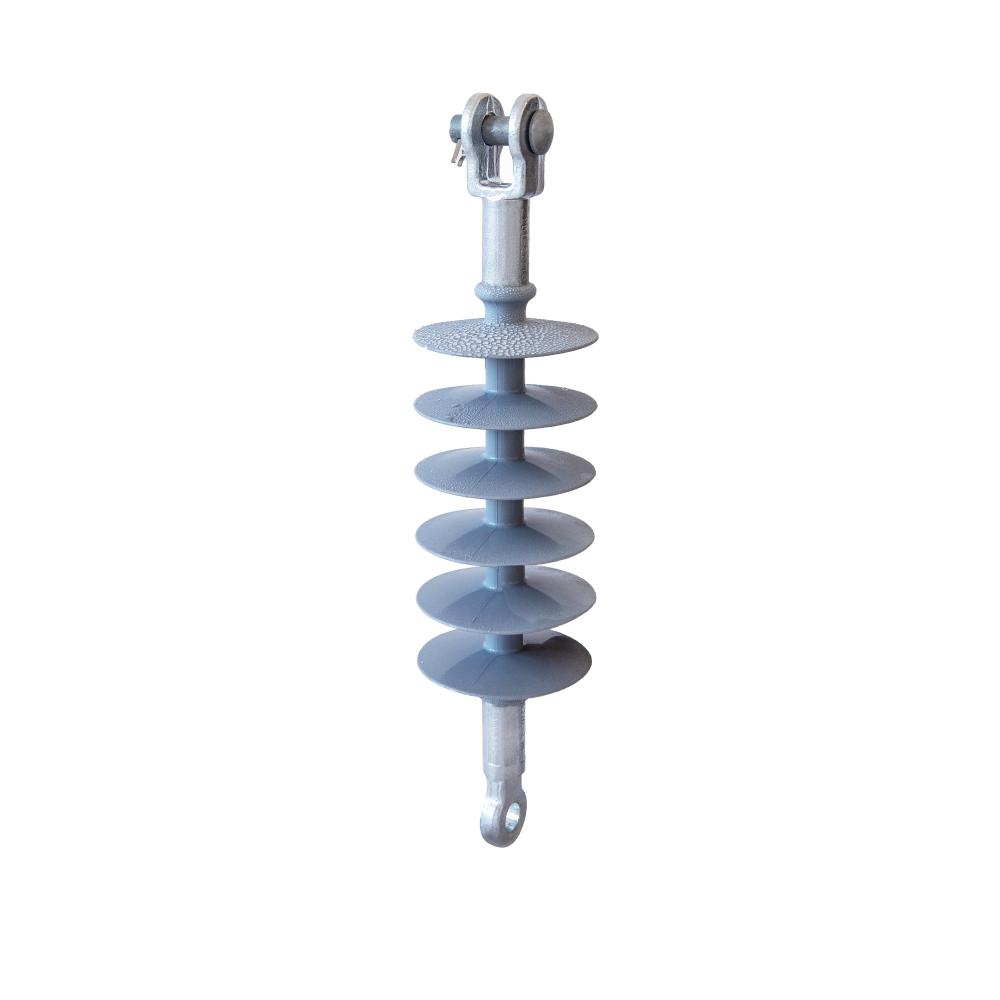

Type: Insulator
Material: Composite Polymerr
Application: High Voltage
Rated Voltage: 27KV
Color: Red or customized
OEM/ODM: Yes
| Selling Units | : | Piece/Pieces |
| Package Type | : | By carton or free fumigation wooden pallet. Or based on clients' request |
The file is encrypted. Please fill in the following information to continue accessing it
| Rated voltage | SML | Creepage distance | P.F.withstand voltage (dry) | Lightning impulse withstand voltage |
| 27kV | 70kN | 725mm | 100kV | 200kV |

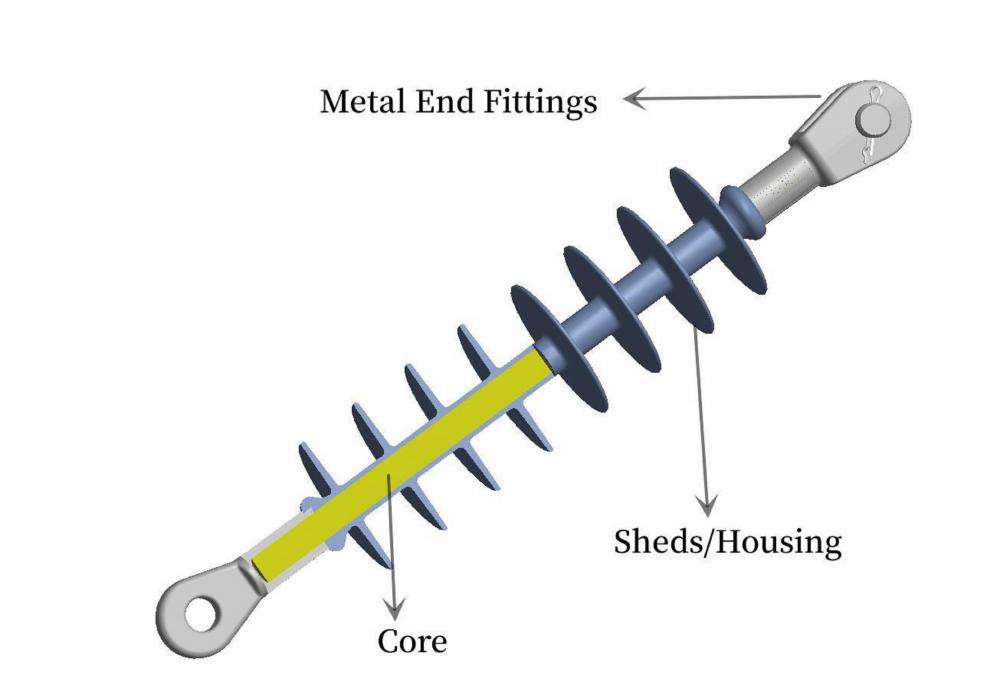

1).Silicon Rubber for sheds/housing.
2).Glass-fiber reinforced epoxy resin rod (ECR type) for core.
3).Hot dip galvanized cast steel for metal fittings.

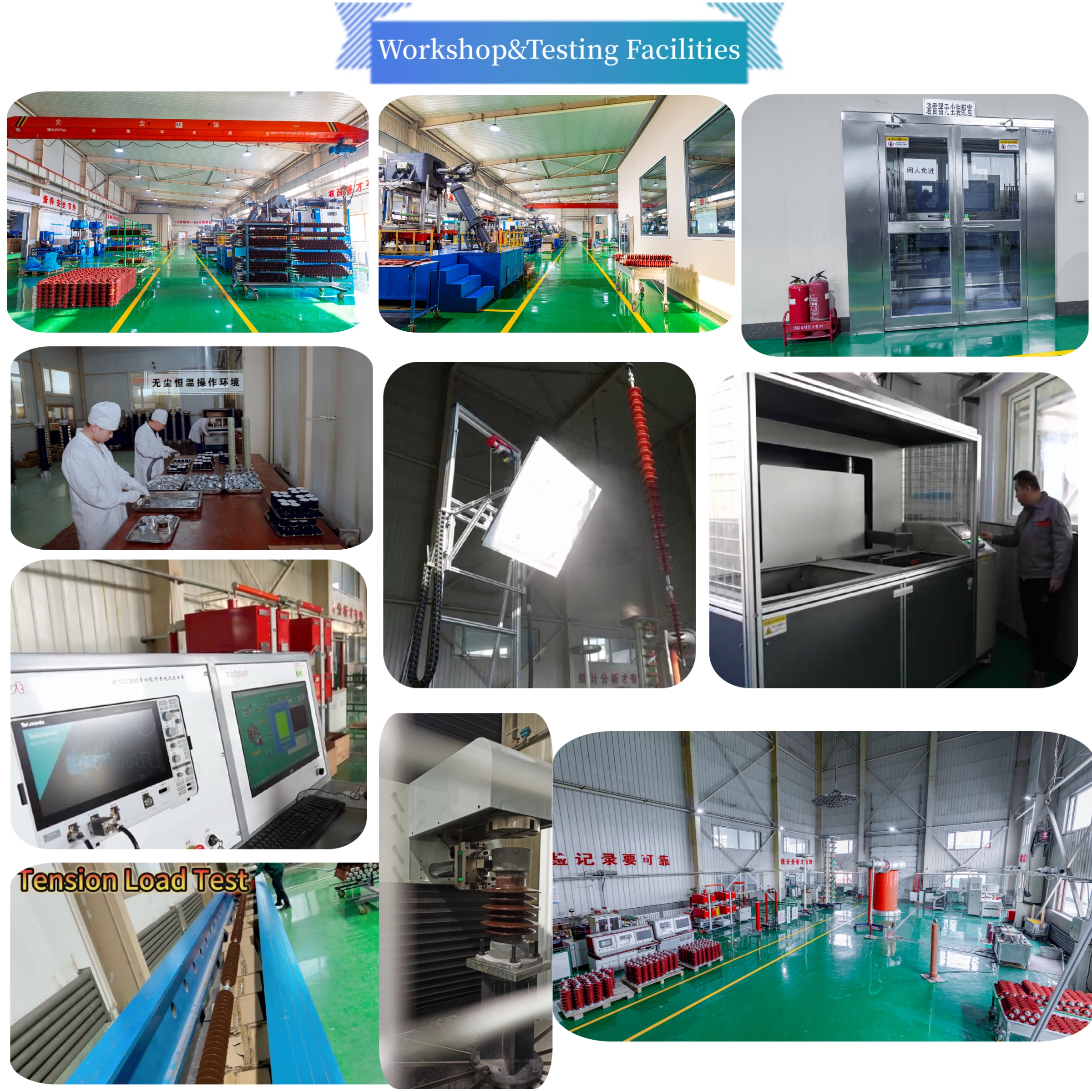

4).1000hours aging test & Prototype Test & Type Test & Factory Test ( Routine and Sampling Test ).
5).IEC / ANSI / GB standard.
