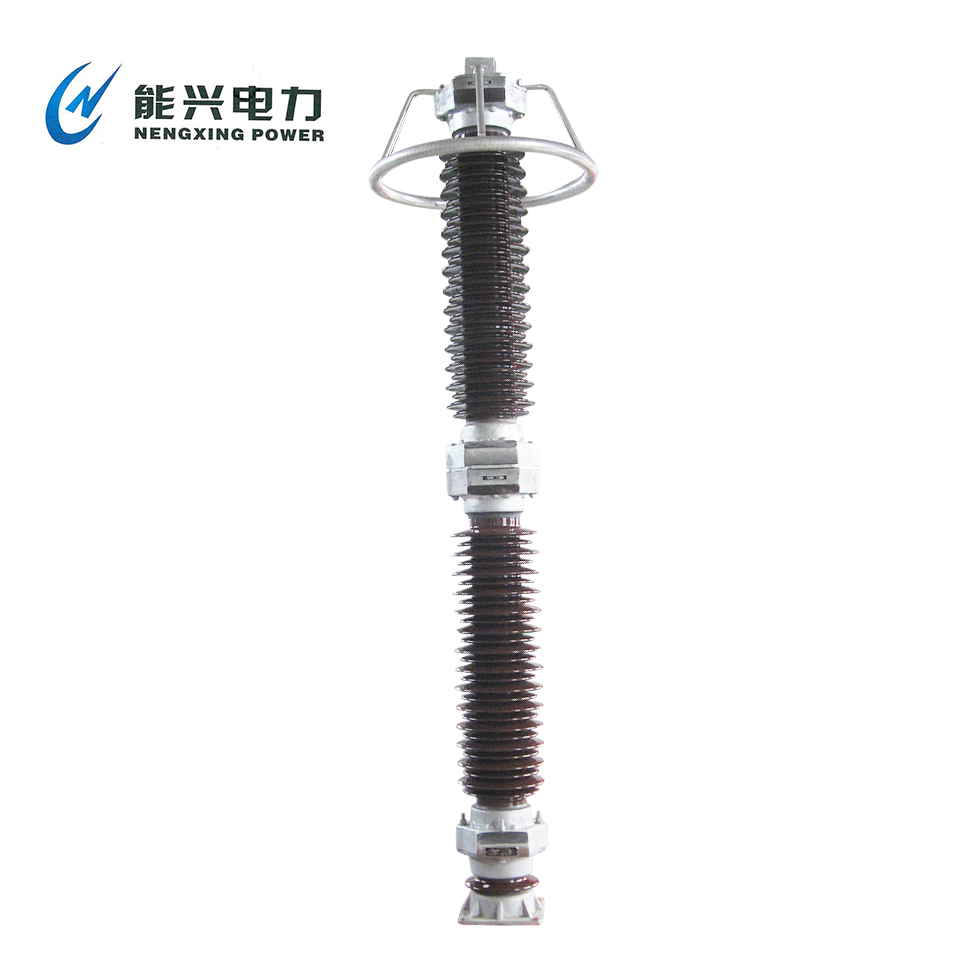

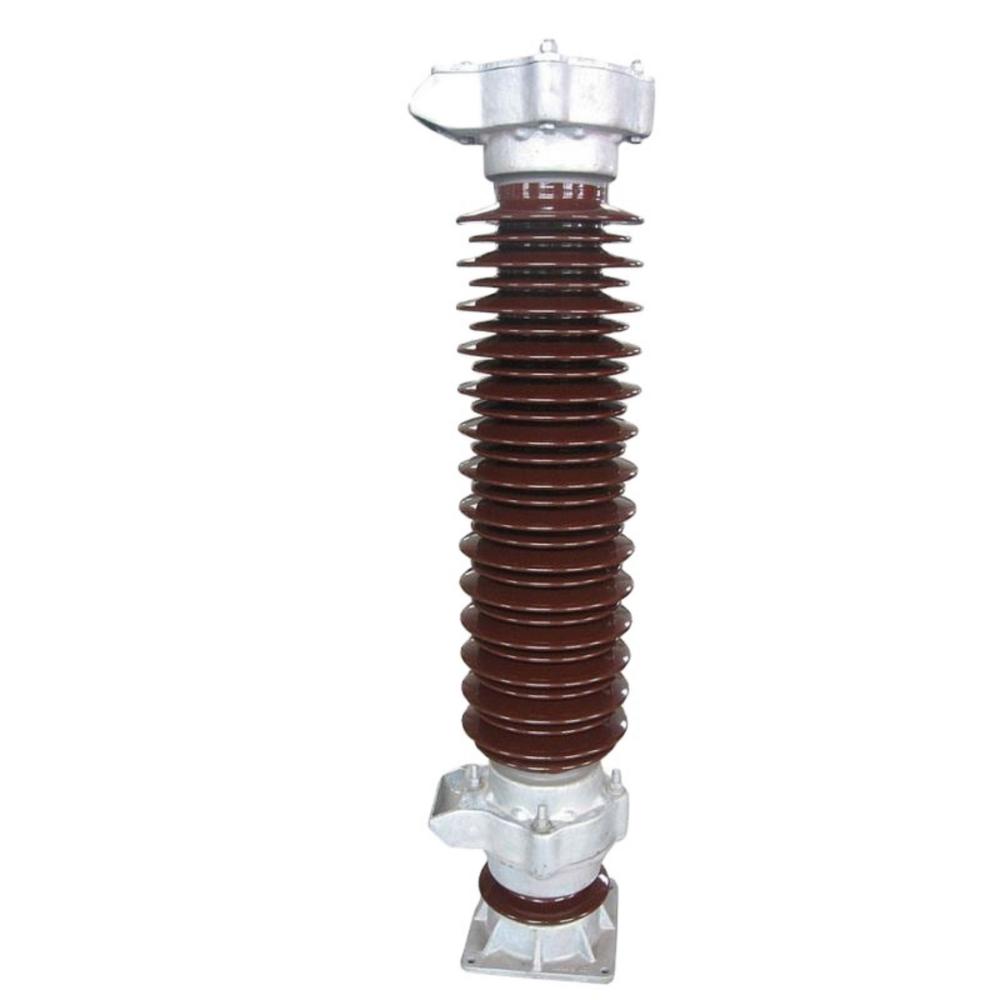

Station Type Porcelain Housing Surge Arrester

$50-300 /Piece/Pieces

Contact Now

Product Description

Product Attributes

Model No.: Y10WZ series

Brand: NXE

Place Of Origin: China

Brand Name: Nengxing

Color: Customized

Material: Porcelain jacket arrester

Quality: 100%Brand

Rated Voltage: 90-312KV

Size: Customized Size

OEM&ODM: Available

Delivery Time: 30 days after payment

Packaging & Delivery

Selling Units	:	Piece/Pieces
Package Type	:	by carton or free fumigation wooden pallet. Or based on clients' request
Picture Example	:

The file is encrypted. Please fill in the following information to continue accessing it

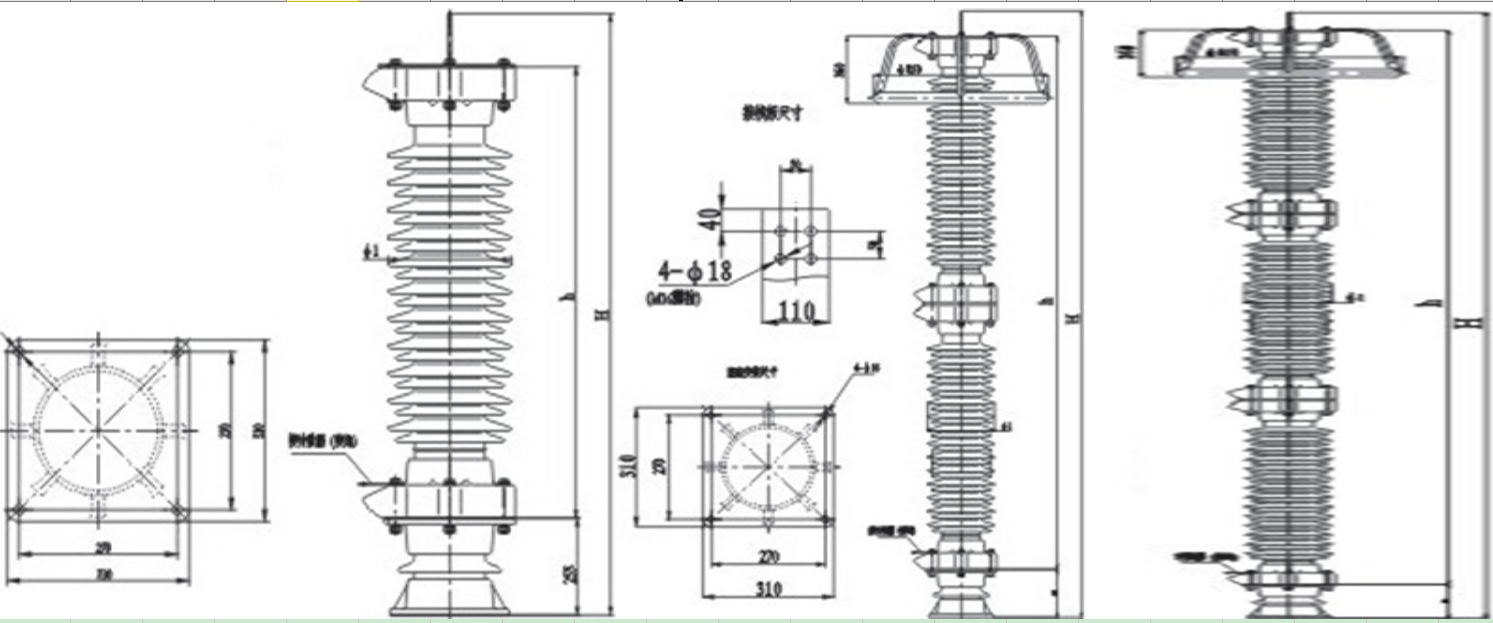

Product Description

Nominal discharge current at 5kA
Model type	Rated voltage (kV)	Continuous operating voltage (kV)	DC U1mA reference voltage (kV)	Residual voltage(kV)			Discharge current		0.75 U1mA leakage current ≤(μA)	Creepage distance (mm/kV)
				Lightning impulse current 8/20μs	Steep current impulse 1/10μs	Switching impulse current 30/60μs	2ms rectangular current impulse withstand (A)	4/10 μs high current (KA)


Y5W-17/45	17	13.6	24	45	51.8	38.3	150	65	50	31
Y5W-51/134	51	40.8	73	134	154	114	400	65	50	41.3
Y5W-51/122	51	40.8	73	122	140	104	400	65	50	41.3
Y5W-54/134	54	43.2	76	134	151	114	400	65	50	41.3
Y5W-90/235	90	72.5	130	235	270	201	600	65	50	36.9
Y5W-96/232	96	75	134	232	267	198	600	65	50	36.9
Y5W-96/250	96	75	140	250	288	213	600	65	50	25.6/31
Y5W-100/260	100	78	145	260	299	221	600	65	50	25.6/31
Y5W-102/266	102	79.6	148	266	305	226	600	65	50	25.6/31
Y5W-108/281	108	84	157	281	323	239	600	65	50	25.6/31

Nominal discharge current at 10kA
Model type	Rated voltage (kV)	Continuous operating voltage (kV)	DC U1mA reference voltage (kV)	Residual voltage(kV)			Discharge current		0.75 U1mA leakage current ≤(μA)	Creepage distance (mm/kV)
				Lightning impulse current 8/20μs	Steep current impulse 1/10μs	Switching impulse current 30/60μs	2ms rectangular current impulse withstand (A)	4/10 μs high current (KA)


Y10W-90/235	90	72.5	130	235	261	201	600	100	50	36.9
Y10W-96/232	96	75	134	232	267	198	600	100	50	36.9
Y10W-96/250	96	75	140	250	280	213	600	100	50	36.9
Y10W-100/260	100	78	145	260	291	221	600	100	50	25.6/31
Y10W-102/266	102	79.6	148	266	297	226	600	100	50	25.6/31
Y10W-108/281	108	84	157	281	315	239	600	100	50	25.6/31
Y10W-192/500	192	150	280	500	560	426	600	100	50	25.6/31
Y10W-200/520	200	156	290	520	582	442	600	100	50	25.6/31
Y10W-200/496	200	156	290	496	556	422	600	100	50	25.6/31
Y10W-204/532	204	159	296	532	591	452	600	100	50	25.6/31
Y10W-216/562	216	168.5	314	562	630	478	600	100	50	25.6/31
Y10W-288/670	288	210	408	670	730	582	1000	100	50	31.2
Y10W-300/727	300	228	425	727	814	618	1000	100	50	31.2
Y10W-312/760	312	237	442	760	847	643	1000	100	50	31.2

Nominal discharge current at 20kA
Model type	Rated voltage (kV)	Continuous operating voltage (kV)	DC U1mA reference voltage (kV)	Residual voltage(kV)			Discharge current		0.75 U1mA leakage current ≤(μA)	Creepage distance (mm/kV)
				Lightning impulse current 8/20μs	Steep current impulse 1/10μs	Switching impulse current 30/60μs	2ms rectangular current impulse withstand (A)	4/10 μs high current (KA)


Y20W-420/1046	420	318	565	1046	1170	858	1800	100	50	31.2
Y20W-444/1106	444	324	597	1106	1238	907	1800	100	50	31.2
